Silicon cantilevers
 The package Ultrasharp Silicon Cantilevers. Part number is SCS11. |
 |
various special hard and conductive coatings according to your requirements. UltraSharp cantilevers are supplied as "Strip" (15 chips), "Half wafer" (200 chips) and "Full wafer" (400 chips). All chips are pre-cleaved, quality-tested and placed on gelfilm for ease of utilization and 100% success of use. We use GELPACK containers. Tips in conventional wafer form can be supplied per customer request.
|

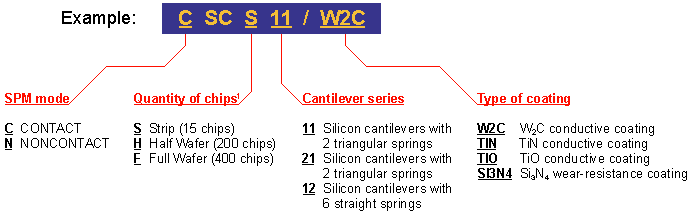

| Part Number information for Ultrasharp silicon cantilevers. Standard formats. Ultrasharp silicon cantilevers can be ordered in standard formats by a variety of features. The part number reflects the specific types of features chosen. |
|
For example: 15 chips of Ultrasharp silicon cantilevers for contact SPM mode W2C conductive coating and triangular springs are described as CSCS11/W2C, 200 chips of Ultrasharp silicon cantilevers for contact SPM mode Si3N4 wear-resistance coating and straight springs are described as SCH12/Si3N4.
1 If you place an order for Half Wafer (200 chips) or Full Wafer (400 chips) then you can choose different cantilevers Example:
50 chips of NSCS11 series + 50 chips of CSCS11 series + 50 chips of NSCS12 series + 50 chips of CSCS21 series.
200 chips of CSCS11 series + 100 chips of NSCS11 series + 50 chips of NSCS21 series + 50 chips of NSCS12 series. |
|
